Weaver Tactical Picatinny Ring 1" Extra-High 6-Hole Mount
Weaver
$64.69
(No reviews yet)
Write a Review
Weaver

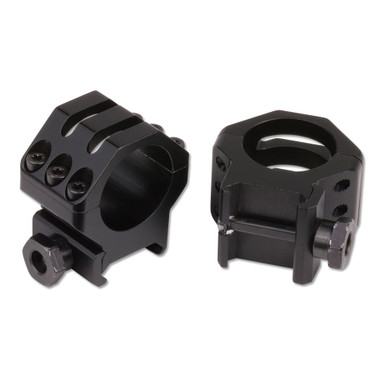

Weaver Tactical Picatinny Ring 1" Extra-High 6-Hole Mount
The Weaver Tactical 6-Hole Picatinny 1" Extra-High Ring delivers professional-grade optic mounting security with a purpose-built design engineered for law enforcement, military, and precision rifle applications.
- Upgraded Picatinny crossbolt design meets strict MIL-STD-1913 rail specifications
- Six-screw clamping system provides maximum torque and vibration resistance
- Type III hard coat anodized finish resists corrosion, wear, and harsh field conditions
- No-strip, no-slip Torx screws ensure consistent, reliable torque every time
- Extra-high profile accommodates large objective lenses and night-vision optics
- Expanded height options offer broad compatibility across tactical and precision rifles
Who This Is For
These rings are ideal for law enforcement officers, military personnel, and serious precision shooters who demand uncompromising optic security on duty rifles, AR-platform builds, and long-range precision rigs. The extra-high configuration is especially well-suited for shooters running large 50mm+ objective lenses or those who need additional clearance for night vision and thermal optics.
Specifications
| Brand | Weaver |
|---|---|
| Model | Tact Ring 6-Hole Picatinny X-Hi |
| Ring Diameter | 1 inch (25.4mm) |
| Height | Extra-High |
| Rail Compatibility | Picatinny / MIL-STD-1913 |
| Screw Count | 6 screws per ring |
| Screw Type | Torx (no-strip design) |
| Finish | Type III Hard Coat Anodized |
| Material | Aircraft-grade aluminum |
| Color | Matte Black |
Frequently Asked Questions
What is the difference between the extra-high profile and standard height rings?
The extra-high profile provides greater clearance between the barrel and the bottom of your scope tube. This is especially important when using scopes with large objective lenses (50mm or larger), free-float handguards with top rails, or night vision and thermal devices that require additional mounting height. If you're running a standard objective lens on a flat-top rifle, a lower or medium ring height may give you a better cheek weld.
Are these rings compatible with standard Weaver-style rails, or only Picatinny rails?
These rings are specifically designed to the Picatinny (MIL-STD-1913) rail specification, which features precise cross-slot dimensions. While Weaver-style rails are similar, they have slightly different slot spacing and dimensions. For the most secure fit and to take full advantage of the six-screw crossbolt design, use these rings on a true Picatinny rail. They may fit some Weaver rails, but a dedicated Picatinny rail is strongly recommended.
What torque should I use when installing these rings on my rifle?
Weaver recommends following standard optics mounting torque guidelines: typically 15–18 in-lbs for the cap screws securing the scope, and 65 in-lbs for the rail crossbolts, though always consult the included instruction sheet for model-specific values. The Torx screw design helps prevent cam-out and stripping, but using a calibrated torque wrench is still strongly advised to avoid over-tightening and damaging your scope tube or rail.
